Follow-Me Track-iT

MSRP: POA
FollowMeTrack-iT

Follow-Me Track-iT is the next generation of Ultra Wideband (UWB) auto-tracking.

Follow-Me Track-iT allows you to track performers automatically. Performers wear compact trackers (tags) that communicate their position with the anchors surrounding the area to be tracked. Unlimited fixtures and other devices requiring positional data can be assigned to track performers. Follow-Me Track-iT's positional data can be shared with third-party systems over Posi Stage Net (PSN), for example for audio and video systems.

By integrating a Follow-Me Track-iT server into an existing Follow-Me 3D SIX system you have the advantage of having fall-back options at all times and the unique ability to monitor the tracking process live via the Follow-Me camera. Extending a Follow-Me 3D SIX system with Track-iT allows you to use both manual and auto tracking simultaneously, autonomously and as redundancy.

Follow-Me Track-iT is able to scale with your requirements. At all times you are able to add more tags to follow additional performers and if the size of your performance area increases, you can simply add additional anchors to expand the reach of the trackable area.

Variant MSRP

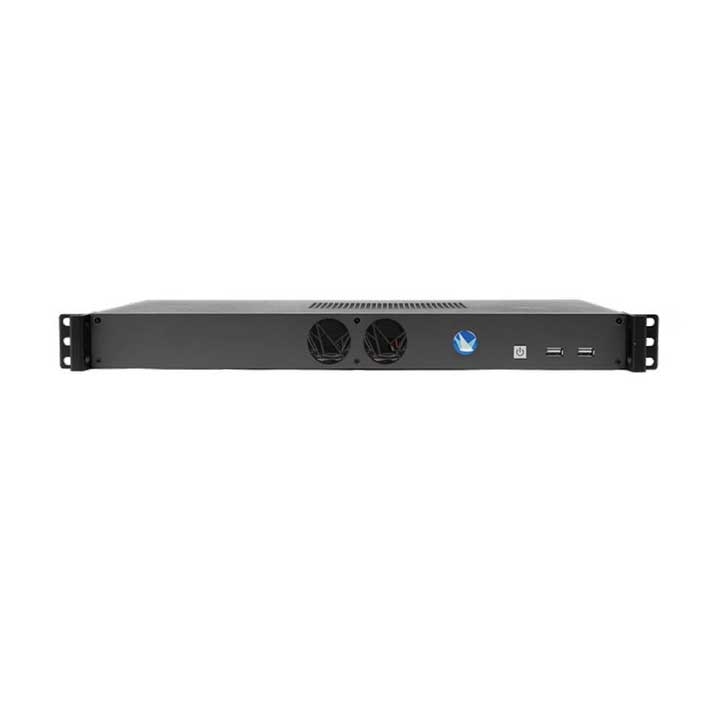

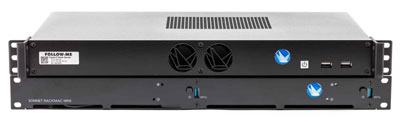

Follow-Me Track-iT Server
POA
Follow-Me Track-iT Tag in license
POA
Would you like a Demo?

Part Numbers:

  • FM-ATSERVER755: Follow-Me Autotracking server
  • FM-ATTAG750: Follow-Me Autotracking tag in license
  • FM-ATCHARGE753: Follow-Me Autotracking tag charger
  • FM-ATANCHOR751: Follow-Me Autotracking anchor

Automatically track performers with compact, lightweight tags

The tags are compact and light so that they can be worn conveniently in or under the performers' clothing. The tags can be easily attached to a person's pocket or belt. Preferably and for redundancy purposes two tags are attached per performer, this improves the line of sight between the tags and the anchors throughout the performance area. The Follow-Me Track-iT tags can be charged using the Follow-Me Tag Charger.

The Follow-Me Track-iT tag:

  • Is a UWB transceiver with an integrated omni-directional UWB antenna and Motion Processing Unit.
  • Easily lasts a full working day with a battery life of at least 12 hours.
  • Is quickly charged from empty to full over its USB-C port in approximately 1-2 hours.
  • Only weighs 18.3 grams.
  • Is fully certified in the United States (FCC) and European Union (CE).

Automatically track performers with compact, lightweight tags


Anchors that scale with your performance area

For optimal tracking quality, anchors are placed throughout the performance area that retrieves continuous information on the position of the tags on the performer at all times. The amount of anchors that are needed for a specific show depends on the size of the performance area. Track-iT is not limited in anchor amount. The anchors can be mounted easily and quickly with specially designed anchor mounts. The Ethercon connectors are used to connect the anchors to a PoE switch, and the anchors can be daisy-chained.

Since Follow-Me Track-iT is radio-frequency based, it has no issues with external influences such as direct sunlight, pyro, and smoke. The system makes use of smart small motion filters to have the spotlights stable on the performers.

The Follow-Me Track-iT Anchor:

  • Is a UWB transceiver with an integrated omni-directional UWB antenna.
  • Can be daisy-chained to reduce cable lengths (Chainable POE 802.3af/at/bt)
  • Can easily be identified remotely showing useful color indications over its customizable LED indicators
  • Is clock-synchronized with all other anchors in a performance area greatly improving redundancy.
  • Weighs 571 grams.
  • Is fully certified in the United States (FCC) and European Union (CE).

Anchors that scale with your performance area


Extend your Follow-Me 3D system with Track-iT

As Follow-Me Track-iT is able to integrate with Follow-Me 3D, you keep all of its functionality including:

  • 3D Mesh: Map your performance area and any objects into the 3D editor. Prevent fixture beams from hitting objects by using fixture masking functionality.
  • Continuous beam size: Fixtures will automatically adjust the zoom or iris size based on the position of the performer on stage.
  • Fixture prediction: Use fixture and target prediction for fixtures with slower pan/tilt motors.
  • Control channels: Allow you to control Follow-Me features through the lighting console, including target assignment, continuous beam size, and fixture prediction.
  • Fixture refinement: Easily pinpoint the position and orientation of your fixtures using the fixture refinement tool.
  • Posi Stage Net: Send out performer positioning information to 3rd party systems over Posi Stage Net (PSN).

As Follow-Me Track-iT integrates with the Follow-Me 3D system, you are always able to follow both automatically and manually simultaneously, for example when the tags are not possible on a specific performer due to outfit limitations.

Extend your Follow-Me 3D system with Track-iT


System based on your requirements

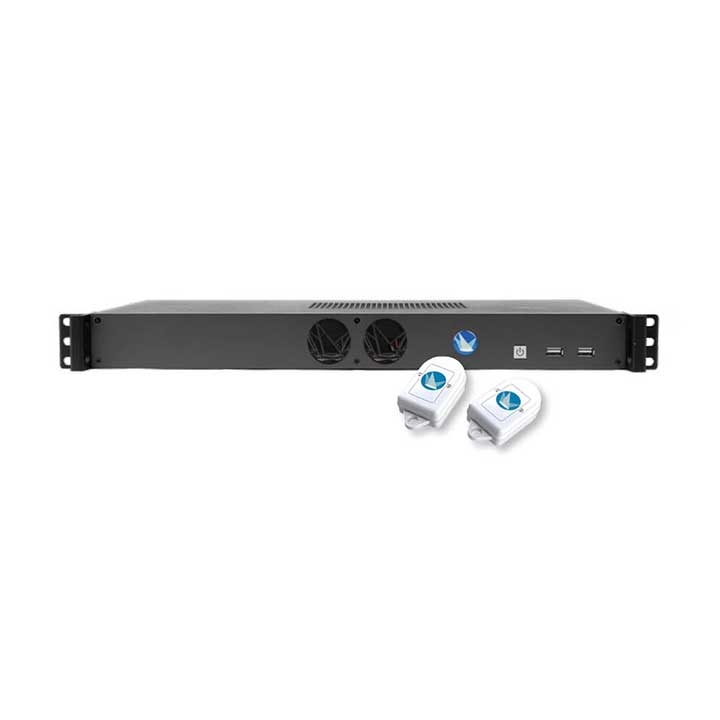

The Follow-Me Track-iT system consists of Anchors, tags, and the Track-iT server. The number of anchors and tags will be adjusted based on the requirements for your show.

If you have any questions regarding the use of Track-iT for your show, please get in touch with us so we can propose a solution for your project.

System based on your requirements

My Follow-Me is a customer portal provided by Follow-Me, where you can find the releases of software and view tutorials. With a My Follow-Me account, you are able to download the latest version of the Follow-Me software, read the information on updates and changes, and watch tutorial videos. Learn More & Register

Note: Follow-Me reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.follow-me.nu.
