Space Force onebytwo™
MSRP:
$2,605.00 USD
CQ647-2000

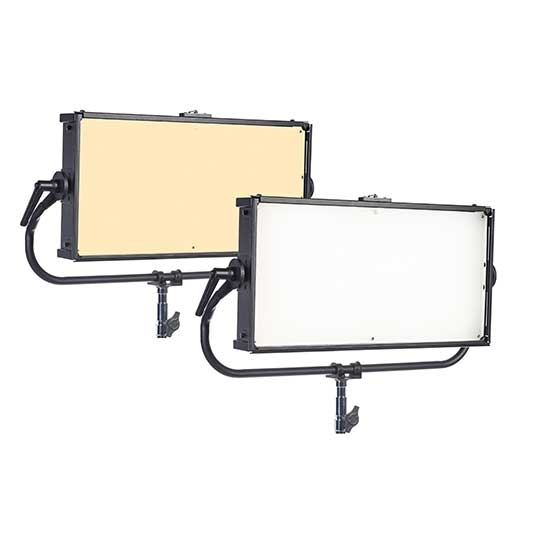

The Chroma-Q® Space Force onebytwo™ is a cost-effective, bright, high-quality variable white LED soft light panel that is a modern replacement for traditional soft sources used in TV studios, live broadcasts, film, vlog, video conferencing rooms, conference rooms, and photographic applications.
Key Features
- High-quality, pure, diffused soft lighting
- Variable white - 2,800K - 6,000K
- Smooth, soft uniform beam
- Up to 13,800 lumens
- Convection cooling for quiet operation
- Lightweight (8.5kg / 19lbs) with built-in power & dimming
- Standard 12” x 25” size, 1:2 ratio fits small spaces
- Variable PWM flicker-free operation
- Wireless DMX (optional) / RDM
- Chroma-Q’s proven LED performance
Featuring 15 years of LED innovation and our award-winning Space Force™ LED space / soft light technologies, the onebytwo is the ideal fit for standard room ceiling height studios and small spaces.
The panel’s 1x2 ratio and compact dimensions enable it to be mounted side-by-side in either ratio, overhead, or on a wall, to create a huge volume of light in a small space.
Highly efficient and natively single-source, the onebytwo is CCT variable between 2,800K and 6,000K and has an output of up to 13,800 lumens. The fixture provides high colour rendering indexes, which are requirements for light sources used in the film and TV industry to ensure accurate colour rendering.
Convection cooling provides quiet operation for studios and a cooler working environment, as well as reducing air conditioning needs to further boost your energy savings.
With manual & remotely controllable LED frequency up to 96,000Hz, the onebytwo ensures flicker-free operation. Extensive RDM functionality is provided through wired, or the optional LumenRadio CRMX, connections.
The lightweight design only 6.5 kg /14.3 lb (Without Yoke); 8.5kg / 19lbs (With Yoke) incorporates all power & control electronics, making it quick and easy to set up. Built to last, the onebytwo requires minimal maintenance and retains colour consistency between units owing to our LED emitter inspection and proprietary ColorSure™ LED calibration system.
Optional accessories include a hanging offset bracket, 4-way bridle, and a full range of beam control accessories.
- Chroma-Q Space Force onebytwo™ and twobyfour™ Brochure
- Chroma-Q Space Force onebytwo™ Spec Sheet
- Chroma-Q Space Force onebytwo™ Manual v2.0
- Chroma-Q Space Force onebytwo™ Quick Start Guide V2.0
- Space Force onebytwo™ Addressing Board Firmware
- Chroma-Q Space Force onebytwo™ Exploded Diagram
- Chroma-Q Space Force onebytwo™ IES

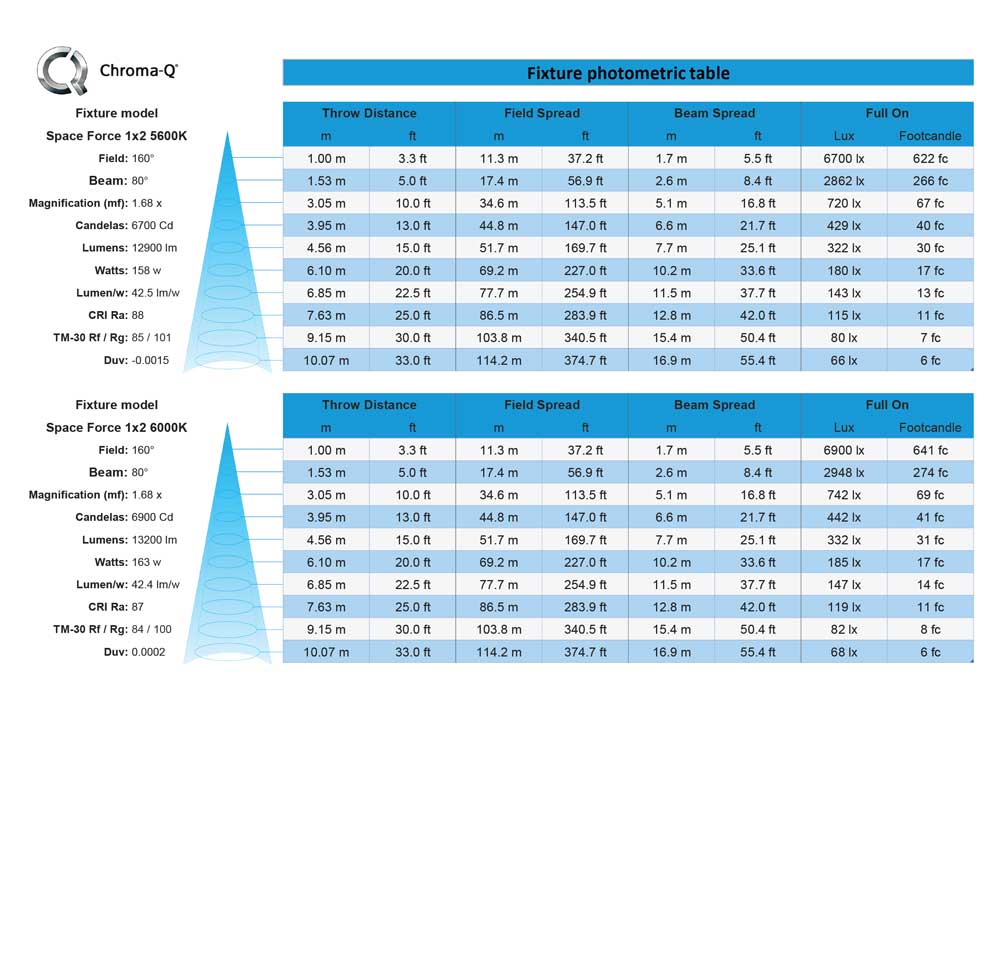

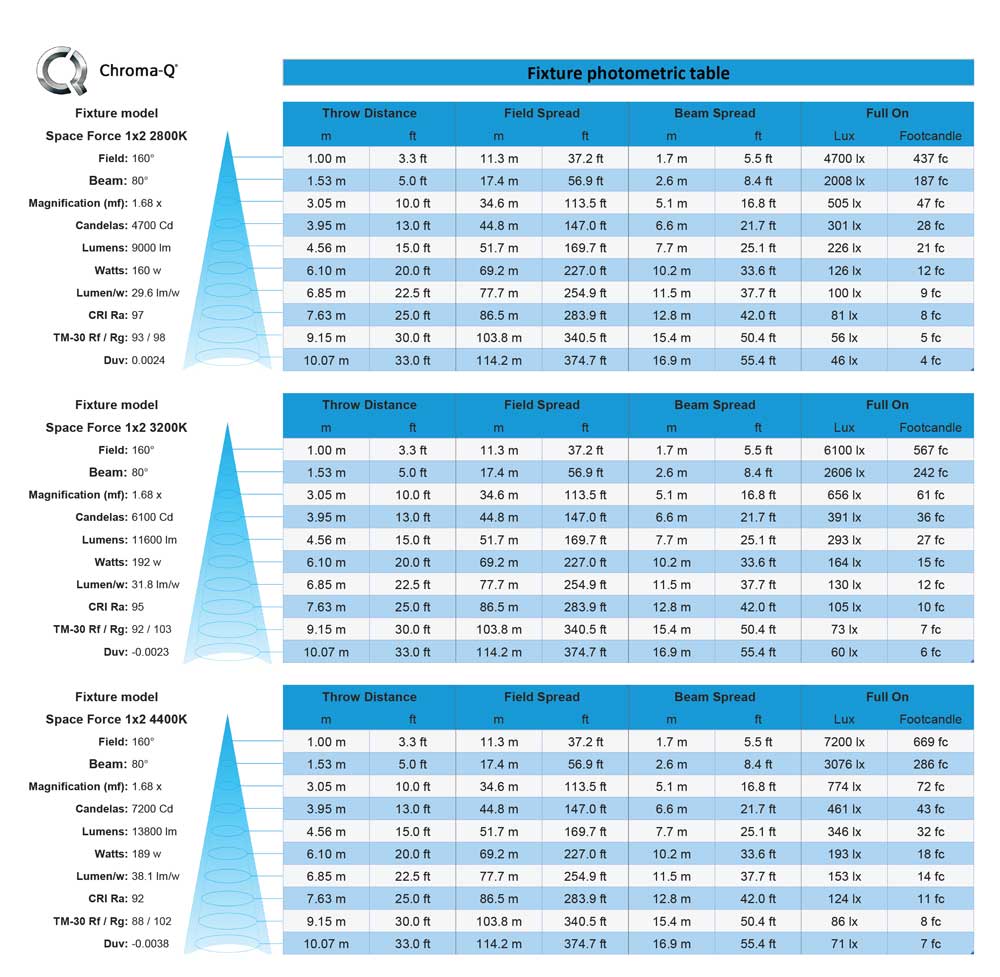

- Chroma-Q Space Force onebytwo™ Photometric Table v 3-22-27
- Chroma-Q Chroma-Q VectorWorks Symbols
- Chroma-Q Space Force onebytwo™ Line drawing rev D (PDF + DWG)
- Chroma-Q Space Force onebytwo™ No Yoke 2D Symbols DWG
- Chroma-Q Space Force onebytwo™ No Yoke 3D Symbols DWG
- Download All
|
|
Space Force onebytwo |
| Product Codes | CQ647-2000 Chroma-Q Space Force onebytwo with yoke (black) |
| Discontinued: CQ647-2500 Chroma-Q Space Force onebytwo with yoke and LumenRadio Installed (black) | |
| Discontinued: CQ647-2005 Chroma-Q Space Force onebytwo with yoke (white body) | |
| Discontinued: CQ647-2505 Chroma-Q Space Force onebytwo with yoke and LumenRadio Installed (white body) | |
| Net Dimensions (WxHxD) | 631mm X 313mm X 208mm / 25” X 12” X 8” |
| Net Weight | 6.5 kg /14.3 lb (Without Yoke) 8.5kg / 19lbs (With Yoke) |
| Shipping Dimensions |
737 mm x 406 mm x 280 mm / 29” x 16” x 11" |
| Shipping Weight | 10kg / 22lbs |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC 50-60Hz 218VA |
| Power Factor | 0.977 @ 120V AC |
| 0.928 @ 230V AC | |
| Power Consumption | 204W @ 120V AC |
| 204W @ 230V AC | |
| Idle Power Consumption | 9W @ 120V AC |
| 10W @ 230V AC | |
| Max Sound Level (Decibel) | 35.48 db |
| Idle Sound Level (Decibel) | 32.37 db |
| Typical Power & Current | Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. |
| Power Connectors In/Out | Neutrik powerCON TRUE1 |
| Data Connectors In/Out | Neutrik XLR 5-pin male and female |
| Control Protocol | DMX |
| Operating Temperature | 0°C to 40°C |
| Construction | Powder coated Aluminium |
| Colour | Black |
| Built-In Hardware | Frame Holder |
| IP Rating | IP20 |
| Approvals | CISPR 22 :2006/EN55022 :2006 & CISPR 24 :1997/EN55024 :1998, ICES-003 :2004 & FCC Part 15 Subpart B: 2007. CSA C22. No. 166-M1983:R2008 UL 1573:2003; UL 8750 |
* Preliminary specs
| Space Force onebytwo | |
| Control Modes | INT-CCT, INT-CCT-EXTENDED |
| Dimming Curve | Theatrical |
| Hot Lumen Output (Combined) | @ 2,800K: 9,009 lm, @ 4,400K: 13,808 lm, @ 6,000K: 13,290 lm |
| Luminance | 800Lux / 74fc @ 3M / 9.8ft |
| Optics | Fully homogenised lenses |
| Beam Angle | 80° (approx) |
| Beam Distribution | Symmetrical Direct Illumination |
| CCT | Adjustable 2,800 - 6,000K |
| CRI & TLCI | Up to 97 |
| TM-30-18 | Up to Rf 94, Rg 100 |
| SSI | Up to 87 |
| Lamp Life | L70 at 50,000 hours |
* Preliminary specs
- CHSPFSY Space Force Compl. Manual Offset Yoke with Hardware, BK
- CQ647-9013 Space Force Yoke Hardware Kit only for (without Yoke and Plates and Spigot)
- CQ647-9014 Mounting Plate for Space Force Yoke (CHSPFSY) Kit (W/O Yoke, W/O Hardware)
- CQ647-9015 Space Force Compl. Manual Low Profile Offset Yoke (included with Hardware)
- CQ647-9020 Space Force onebytwo™ Pole operated yoke
- CQ647-9080 Space Force onebytwo™ Protective Lens (replacement) (1 included with fixture)
- CQ647-9001 Space Force onebytwo™ Barn Door Black
- CQ647-9002 Space Force onebytwo™ Barn Door White
- CQ647-0511 Space Force onebytwo™ Bridle Four Way
- CQ647-9025 Space Force onebytwo™ Gel Frame
- CQ647-9030 Space Force onebytwo™ Pop Bank with Full and Half Front Screen
- CQ647-9035 Space Force onebytwo™ EZ Pop Soft Egg Crate Grid for EZ Pop Bank
- CQ647-9040 Space Force onebytwo™ Soft Egg Crate 8 Cell 7” Deep 40 Degree 1x2 Grid
- CQ647-9045 Space Force onebytwo™ Soft Egg Crate 2” Deep 40 Degree 1x2 Grid
- CQ647-9070 Space Force onebytwo™ RF Lumenradio Kit (User Installed)
- CH889-9006 Cable 12/3 5-15P (Male Edison) to PowerCON TRUE1® SJTOOW Adapter 6'
