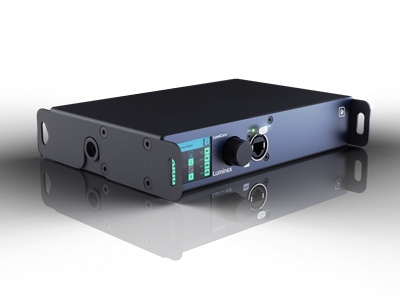

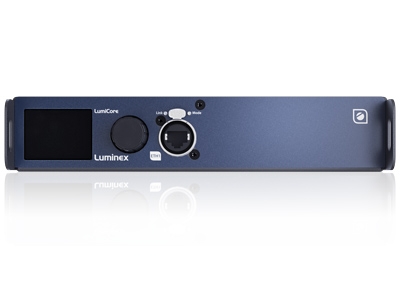

LumiCore

MSRP: $2,925.00 USD
LU0100074-16

Bridging the gap with 64 process engines

With 64 built-in engines, LumiCore allows you to merge and route up to 64 x 4 input sources toward 64 newly defined universes. This way, LumiCore becomes the ideal solution to isolate your control setup on a festival, a theater, or in a TV studio.

As technology is evolving towards full networked solutions (ArtNet or sACN directly to the fixtures), LumiCore provides all the flexibility of the LumiNode directly on the network, with up to 256 input universes merged and routed towards max 128 output universes. All of this with extremely low latency.

Merge in HTP, LTP, Backup, Switch, Crossfade, or Custom Mode

The engine technology allows you to merge in HTP, LTP, Backup, Switch, Crossfade, or custom mode, with different triggers that can be assigned on a per-channel basis.

In large pixel mapping applications, LumiCore is the ideal bridge to merge different control sources into new network streams.

In TV Studio's LumiCore will allow you to have Control Desks in the IT Environment

With its split interface possibilities, LumiCore allows you to isolate your lighting rig LAN from the IT infrastructure. This allows you to monitor your control infrastructure from the IT department and to centralize show storage on IT side while sharing these resources over several studios. LumiCore acts as a real bridge and can be deployed in a fully redundant way.

LumiCore can be used as a plugin device for a touring BlackTrax or automated follow spot system by inserting merged results as a higher priority on the network with the same sACN universe numbers.

In TV studios LumiCore will allow you to use lighting control desks in the IT environment by bridging the local lighting rig and isolating it from the show-critical control network.

For festivals, Lumicore will be your ideal companion to facilitate all of your lighting setups and host the most advanced and flexible data system for your guest acts and upcoming headliners.

Would you like a Demo?

KEY FEATURES

  • Mount one or two units in a 1U rack space
  • Robust and ideal for touring applications
  • 64 processing engines.
  • The M10 insert and safety ear makes it easy to mount it safely on a truss
  • Rack or truss mountable half 19” unit
  • RGB LED for activity indication
  • 2 x EtherCon network port @ 1Gbps with integrated switch
  • Link/Speed LED indication per Ethernet port
  • RGB Mode LED indication per Ethernet port
  • Color display and control jog for fast configuration
  • Contact closure as trigger
  • PoE powered (IEEE 802.3af)
  • Internal universal power supply with Neutrik PowerCon True1
  • Robust steel enclosure with M10 insert and protection ears
  • Supported Protocols: Art-Net I, Art-Net II, Art-Net III, Art-Net IV, sACN (ANSI E1.31), RTTrPL (BlackTrax)

*Note: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up-to-date specifications and product details. www.luminex.be

For the most up-to-date Software and Firmware visit https://www.luminex.be/support-2/
