Jet Spot4Z

MSRP: POA
PIJETSPOT4Z

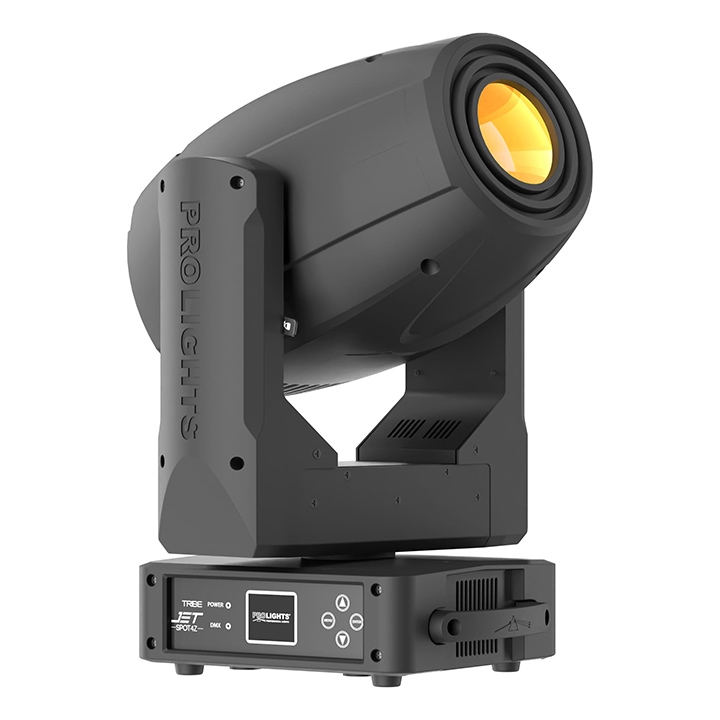

Jet Spot4Z is a 180 W 6.800 K LED spotlight designed to replace a 700 W discharge fixture in theatres, concert halls and a host of other venues. The compact size allows for the use of this luminaire in venues with low ceilings without resorting to zoom. Its custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 8° to 40° zoom range.

Contact Us

Features:

  • Full CMY colour mixing system combined with a colour wheel.
  • Rotating and static gobo wheels, plus prism, iris and linear frost.
  • HD dimming

LIGHT SOURCE

  • Source: 180W high-power white LED
  • CCT: 6.800K
  • CRI: 68
  • Luminous flux: 7'518lm
  • Lux: (8°) 25'200 lx - (40°) 3'250lx @3 m
  • Lux: (8°) 2'268 lx - (40°) 292lx @10 m
  • Source life expectancy: 50.000 h
  • Other:

OPTICS

  • Zoom: 8 - 40° motorised linear zoom
  • Lens type: high-quality glass lens optics
  • Focus: motorised

COLOUR SYSTEM

  • Colour mixing: CMY colour system on 3 gradually fading colour wheels
  • CTC: on wheel 2.500 K and 3.200 K + CTB
  • Colour wheel: 6 dichroic filters on 3 independent colour wheels

DYNAMIC EFFECTS

  • Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer: 24,2 mm - image: 20 mm - thickness: 1,1 mm
  • Fixed gobos: 8 fixed gobos + open
  • Circular prism: 3f with bi-directional rotation, indexing
  • Frost: linear 0 - 100% frost filter
  • Iris: 5 - 100% motorised iris
  • Auto mode: built-in programs with execution speed adjustment

BODY

  • Pan angle: 540°
  • Tilt angle: 270°
  • Pan/Tilt resolution: bit 8 / 16 bit
  • Feedback: automatic repositioning after accidental movement
  • Body: aluminium structure with hi-resistance polycarbonate cover
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 23 / 25 / 27channel
  • RDM: RDM ready for fixture remote monitor and settings
  • Display: black TFT high resolution display
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
  • Master/Slave: for synchronized operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 30 Hz, electronic
  • Battery backup: battery backup for user operation without connecting to the main power
  • Operating temperature: -10° ~ +45°
  • Flicker: flicker free operation

ELECTRICAL

  • Power supply: 100-240 V – 50/60 Hz
  • Power consumption (at 230 V): 250W
  • Power consumption (at 120 V): 252W
  • Output (at 230 V): 14 units on a single power line
  • Output (at 120 V): 8 units on a single power line

PHYSICAL

  • Cooling: forced air with low noise fan
  • Sospension and fixing: any position with quick-lock omega brackets
  • Pan / tilt lock: pan / tilt locking for transportation and maintenance
  • Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection: Neutrik powerCON IN/OUT connectors
  • IP rating: 20
  • Dimensions (WxHxD): 332x544x230mm / 13.07''x21.42''x9.06''
  • Weight: 18,6kg / 41.01lbs

*Note: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details. www.prolightsamerica.com.
