Color One 100X™
MSRP:
$820.00 USD
CHCONE100XRGBA

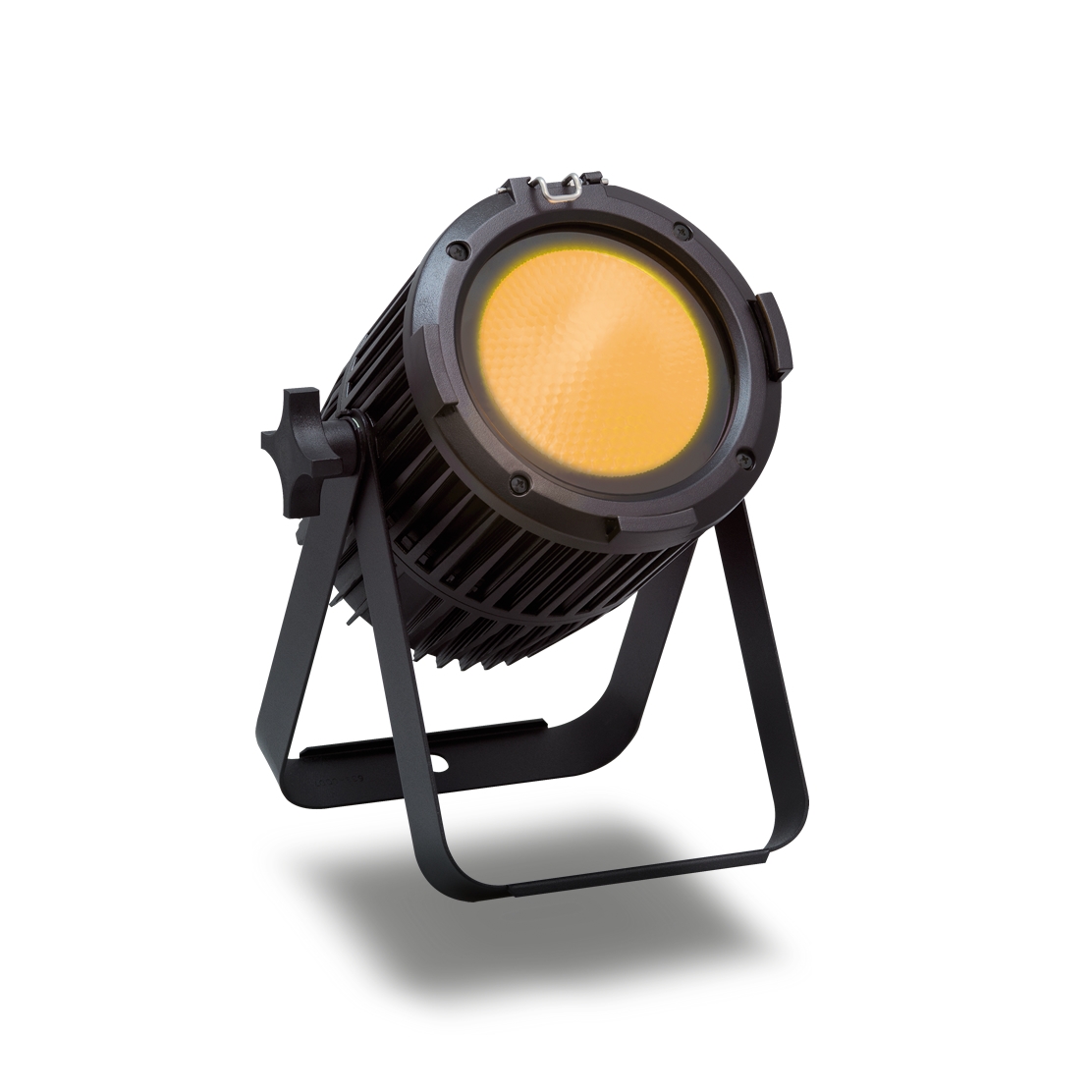

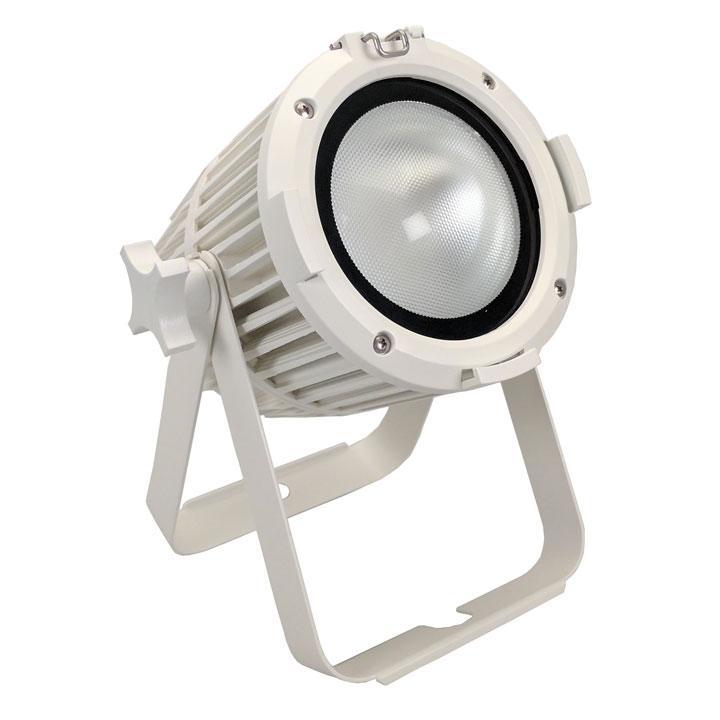

The next generation of the Chroma-Q® Color One family is here: the Color One 100X™ LED PAR! This must-see luminaire features the same innovative homogenised beam as the Color One 100™, only with nearly 60% more output. The 100X's custom optical design and fully homogenised output delivers a powerful, smooth, uniform, and defined 19° beam, with outstanding colour blending across the spectrum and no unsightly colour separation shadows. RGBA emitters deliver outstanding colours across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels, as well as a complete range of whites ---all from ONE source.
Utilising core LED technology from the Chroma-Q® premium performance lighting range, the multi-purpose fixture is ideal for a wide range of applications and provides a powerful, creative lighting tool.
Key Features
- Nearly 60% brighter than its predecessor
- Fully homogenised beam
- RGBA colour-mixing palette
- Extremely uniform wash
- Defined 19° beam
- Bold saturates and subtle pastels from ONE source
- High CRI of 93
- Floor, truss, or wall mountable
- Quiet, convection cooled, no fans
- Theatrical grade dimming
- Chroma-Q calibration provides exceptional fixture-to-fixture consistency
Smooth, Homogenised Optics
The Color One's custom optical design and fully homogenised output provides a smooth, uniform, and defined 19° beam, with outstanding colour blend across the spectrum and no unsightly colour separation shadows.
This makes the Color One ideal for use as a front and backlight with clean shadows, and an uplighter with a smooth, even beam - all from ONE source.
Power Across The Spectrum
The Color One's huge RGBA colour-mixing palette delivers outstanding colour blend across the spectrum - including deep-cold blues, red-hot lava looks, and super-soft pastels - as well as a complete range of whites - all from ONE source.
High CRI
With RGBA colour mixing providing a high CRI of 93, the fixture can achieve extremely accurate colour matching.
Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.
Multi-Purpose Workhorse Fixture
With the advanced feature set also including convection cooling for quiet operation, a versatile mounting yoke, and a choice of IP20 / IP65* models, the Color One 100™ is suitable for numerous entertainment lighting applications - complementing the popular Chroma-Q® Color Force™ and Inspire™ LED fixtures ranges.
Convenient Remote-Controlled Operation
With a simple-to-use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console - saving time and labour with instant access to preset colours, on/off, dimming, and effects.
Compatible With Industry-Standard Accessories
To enable maximum flexibility with users' existing production inventory, the Color One accepts industry-standard 6.25" accessories such as egg crates, barndoors, and top hats.
- Color One 100X™ Brochure (English)
- Color One 100X™ Brochure (Française)
- Color One 100X™ Architectural Specifications
- Color One 100X™ IP65 Architectural Specifications
- Color One 100X™ IP65 Spec Sheet
- Color One 100X™ Spec Sheet
- Color One 100X™ User Manual
- Color One 100X™ Quick Start Guide V2.1
- Color One 100X™ Software v1.9
- Color One 100X™ Exploded Diagram RevB
- Color One 100X™ IP65 Exploded Diagram RevB
- Color One 100X™ IES
- Color One 100X™ IP65 IES

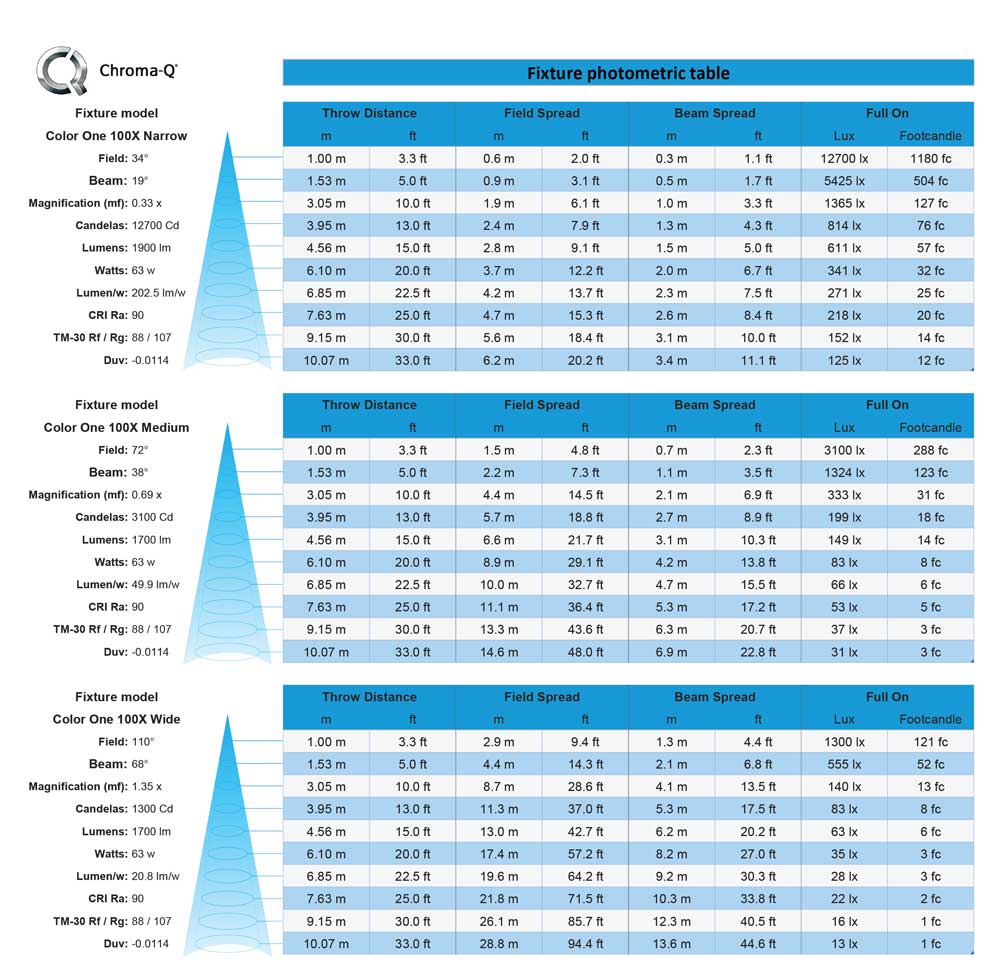

- Color One 100X™ Photometric Table v 3-27-22
- Chroma-Q VectorWorks Symbols
- Color One 100X™ 2D Symbols DWG
- Color One 100X™ 3D Symbols DWG
- Color One 100X™ CAD Symbol
- Color One 100X™ IP65 CAD Symbol
- Color One 100X™ Declaration of Conformity
- Color One 100X™ Declaration of Origin
- Download All
| Product Code | CHCONE100XRGBA (IP20) | CHCONE100XRGBAIPSS (IP65) |
|---|---|---|
| Net Dimensions (Full Open Yoke) |
214mm x 267mm x 232mm / 8.5" x 10.5" x 9" | |
| New Weight | 3.8kg / 8.5lb | 4.3kg / 9.5lb |
| Shipping Dimensions | 406mm x 228mm x 292mm / 16" x 9" x 11.5" | |
| Shipping Weight | 5.5kg / 12lb | 6kg / 12.5lb |
| Power Supply | Built-in | |
| Power Input Rating | 100-240V AC 50-60Hz 125VA | |
| Power Factor | 0.539 | |
| Power Consumption | 63W (Maximum); 5.5W (Stand-by) | |
| Typical Power & Current | Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. | |
| Power Connectors In/Out | powerCON | Trailing lead |
| Data Connectors In/Out | XLR 5-pin | Neutrik Stainless Steel XLR 5-pin on 914mm/36" Tails In & Out |
| Control Protocol | ANSI E1.11 USITT DMX 512-A | |
| Cooling System | Convection | |
| Operating Temperature | 0°C to 40°C | -20°C to +40°C |
| Construction | Cast machined aluminium | |
| Colour | Black (custom colours available on request) | |
| Built-In Hardware | Split Yoke, 6.25" Accessory Holder | |
| IP Rating | IP20 | IP65* |
| Approvals | CISPR 15 / EN55015 & EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598 | |
| LED Engines | 1 |
|---|---|
| LEDs Per Engine | Combination of Red, Green, Blue and Amber |
| Control Modes | 4 channels RGBA, 5 channels RGBAI, 3 channels HSI, 3 channels RGB, 3 channels MLED RGB, Master, Slave |
| Dimming Curve | Theatrical |
| Variable Effects Engine | Yes (via Wireless IR Remote) |
| Effects Parameters | Full Color Scroll, Warm Color Scroll, Cold Color Scroll and Fade In/Fade Out |
| Hot Lumen Output (Combined) | 1,950 |
| Optics | Fully homogenised |
| Beam Angle | 19° |
| Beam Distribution | Symmetrical direct illumination |
| CCT | Adjustable 1,000 - 10,000K |
| Colour Gamut | Performance enhanced |
| CRI | 93 |
| Lamp Life | L70 at 50,000 hours |
Optional
- CHCONELK: Lens Kit Diffusion 36 & 50 Degree for Color/Studio One
- CHCONEREMOTE: Remote IR Wireless for Color/Studio One
- CHCONE100BD: Barndoor For Color/Studio One100, BK
- CHCONE100ECL: Egg Crate Louver For Color/Studio One100, BK
- CHCONE100TH: Top Hat For Color/Studio One100, BK
- CHUSBLOADER2: Chroma-Q Uploader
Included
- CHCONEREMOTE: Remote IR Wireless for Color/Studio One
- Diffusion Frame (included) - Does not work with the IP-rated version
*Note: Chroma-Q reserves the right to make changes and improvements to any of the products described in this document above without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer's web page for the most up to date specifications and product details. www.chroma-q.com
